Roll Out Wheel
Description

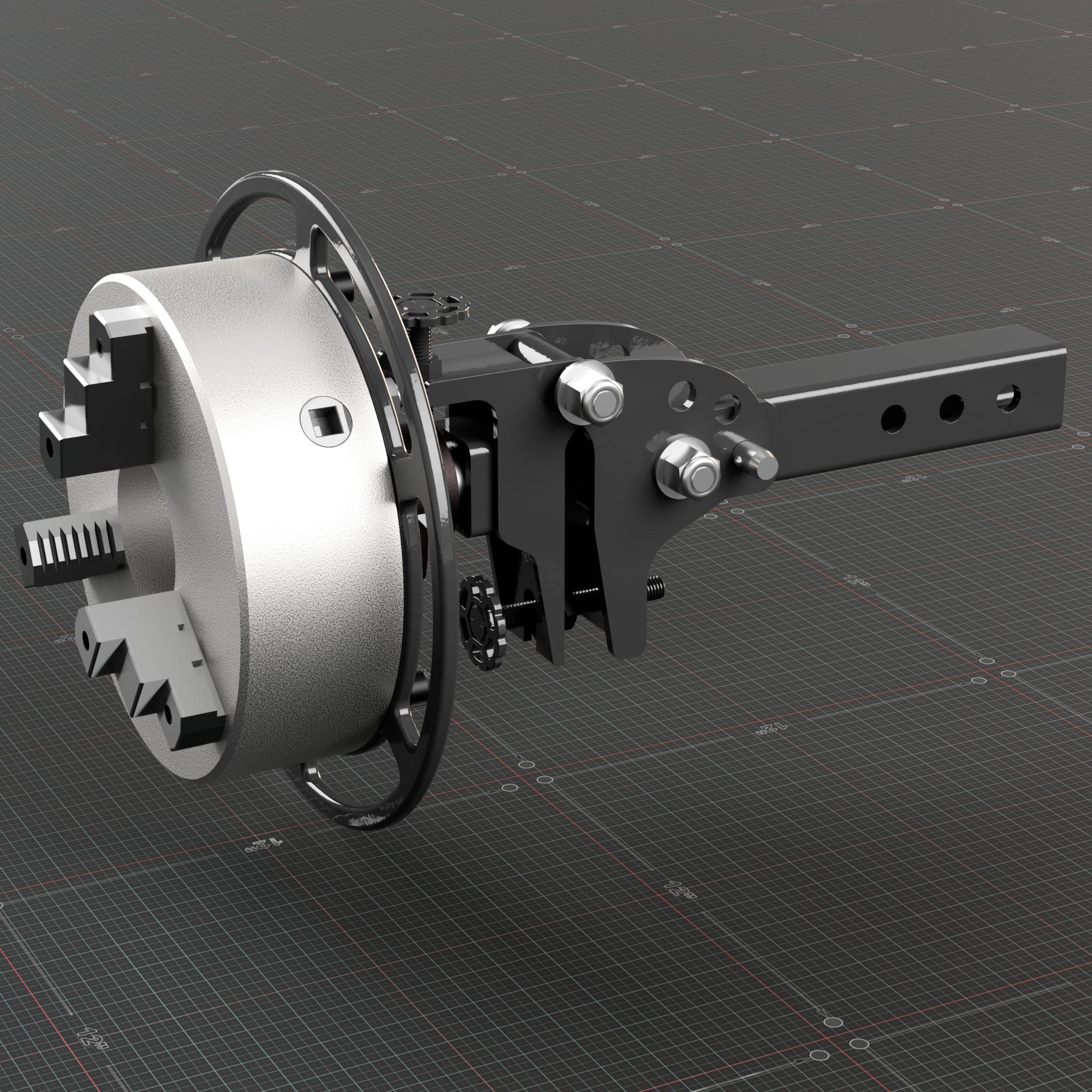

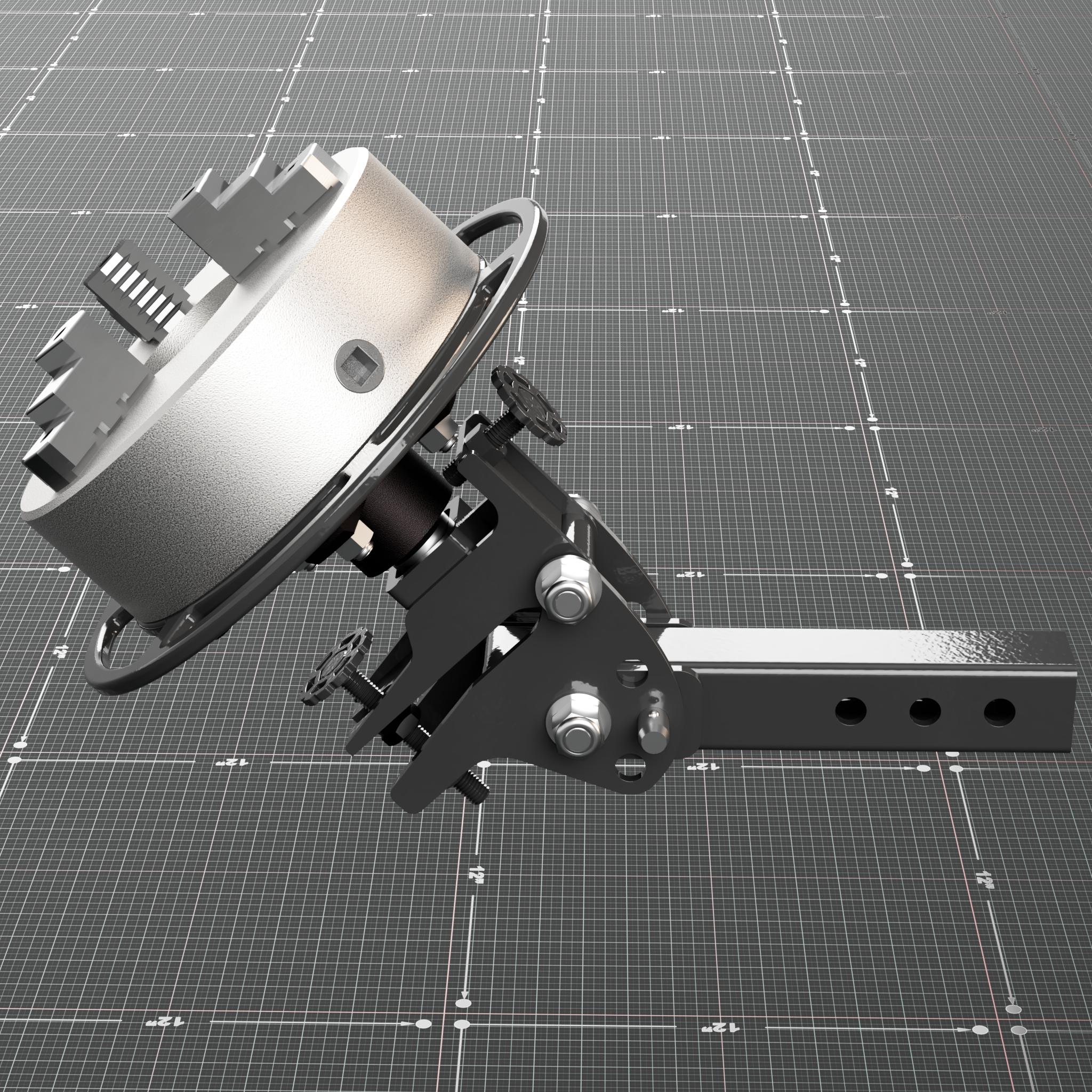

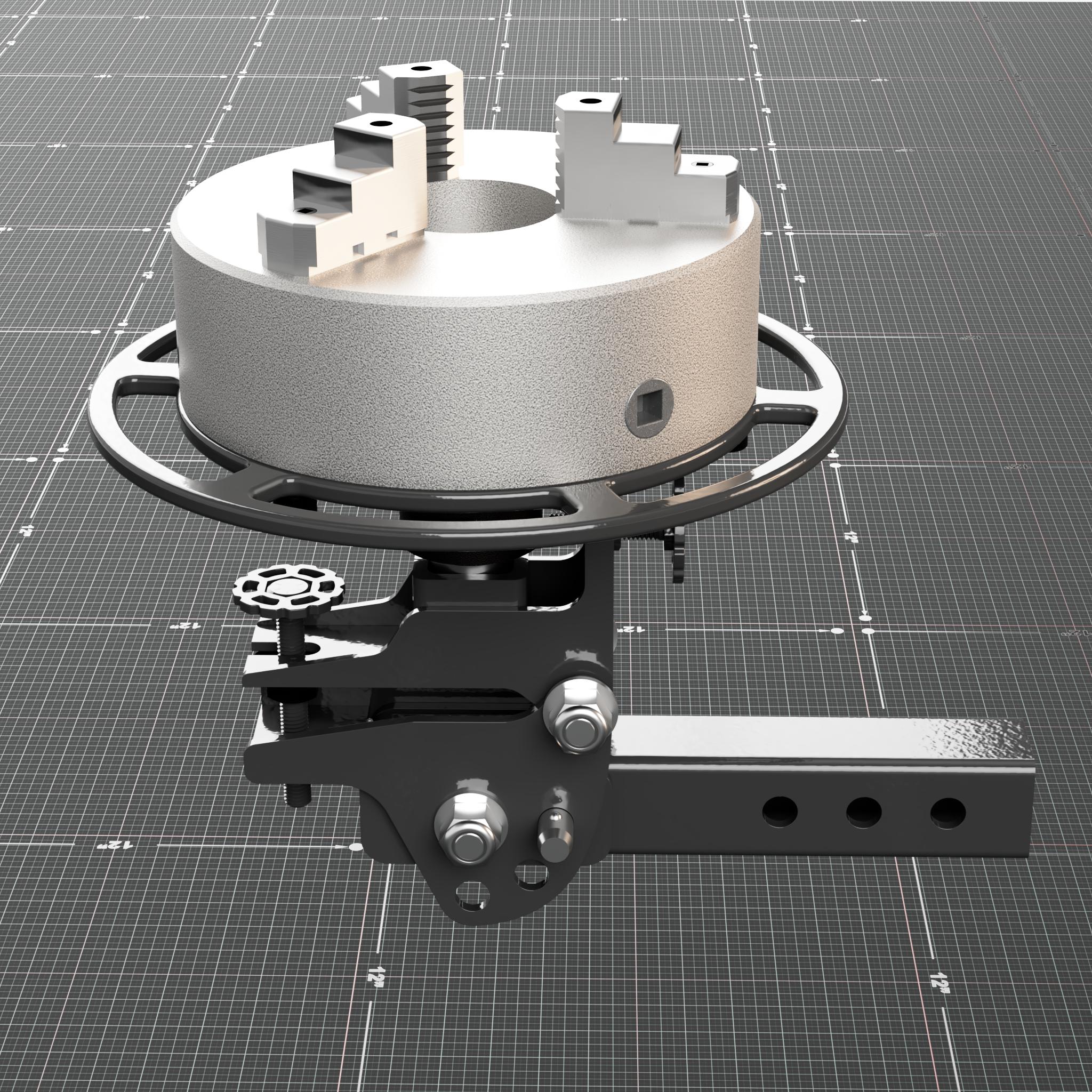

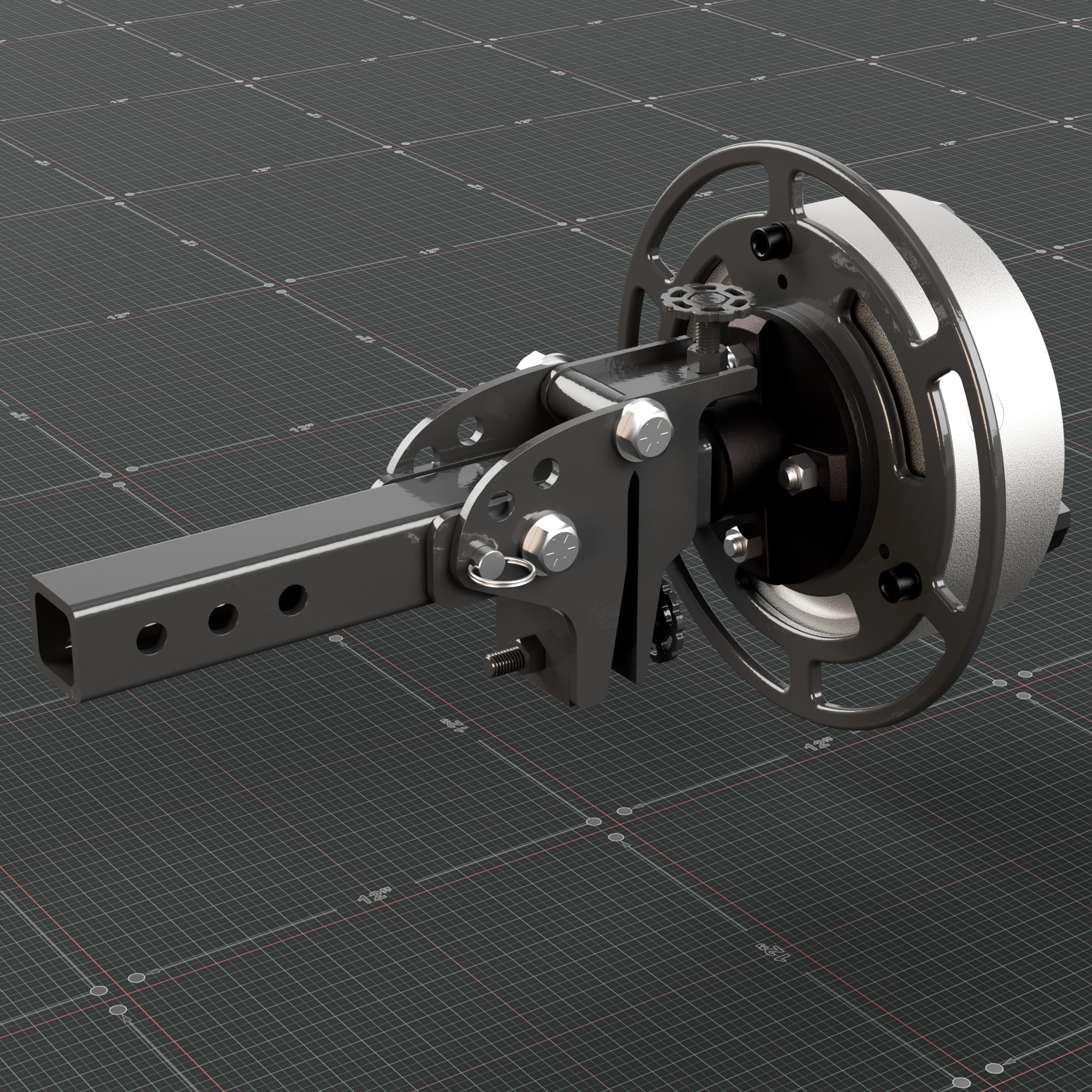

Step up your fabrication and build your own 10" roll out wheel. Easily pin this setup into a 2" hitch and get to work. Pull the quick release pin to swivel the wheel and fit up pipe in 2G, 3G, and 6G positions. Use the leveling screw to tilt the wheel up or down and get your fit ups perfectly level every time. A brake knob on the back securely holds the wheel so you can fit up without any movement.
(DUE TO THE TIGHT TOLERANCES OF THIS ASSEMBLY, WE ONLY OFFER THIS PLAN WITH INCLUDED DXF FILES. THE BUILD PLAN STILL COMES WITH DIMENSIONAL DRAWINGS FOR EACH PART BUT IT IS HIGHLY RECOMMENDED THAT YOU OR A SHOP CNC CUT THE SHEET METAL PARTS.)
**THIS PURCHASE IS FOR A PDF BUILD PLAN DOWNLOAD NOT THE PHYSICAL PRODUCT SHOWN.**
License Type: Personal
Purchase of this plan is for personal use only.
