Roll Out Wheel (CNC)
Description

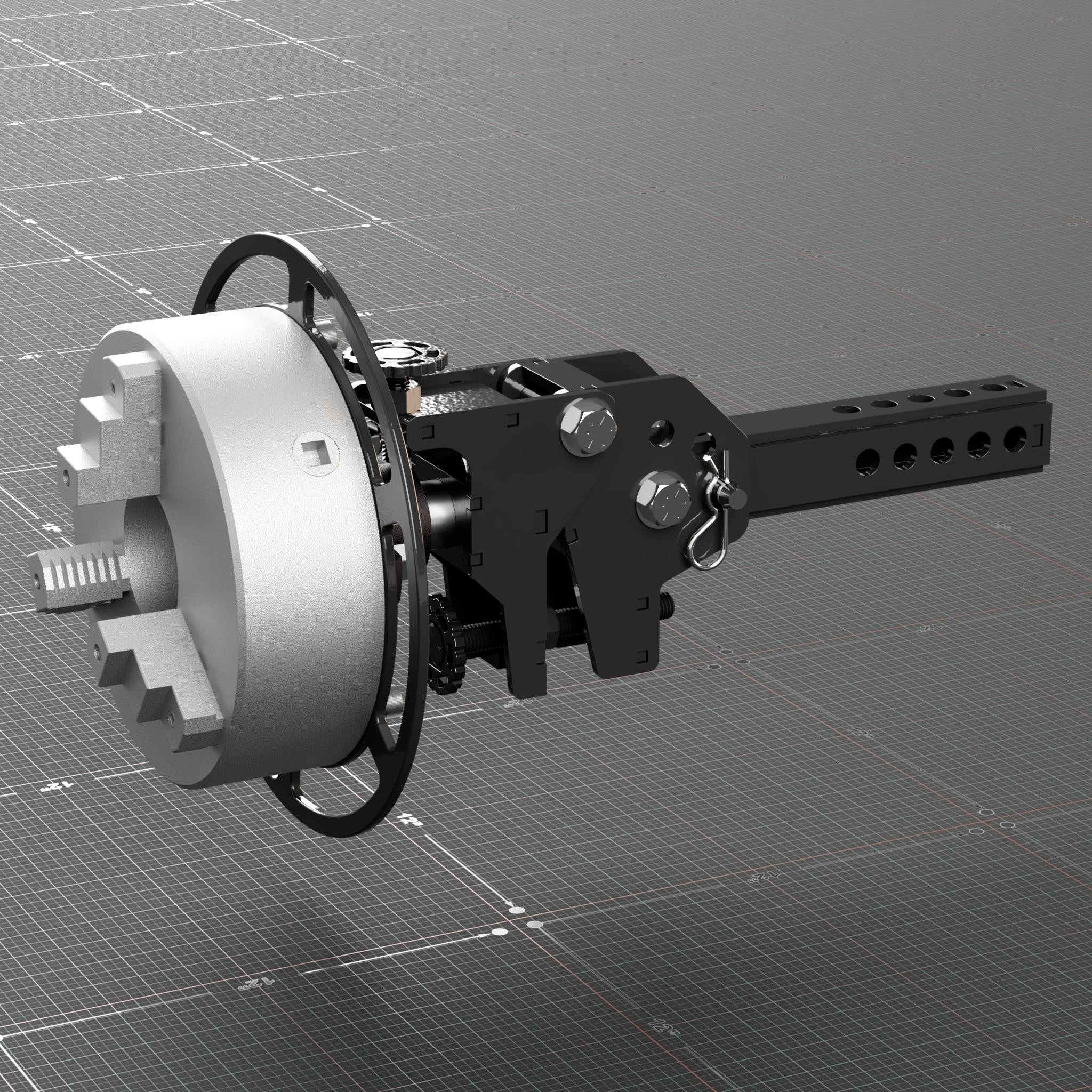

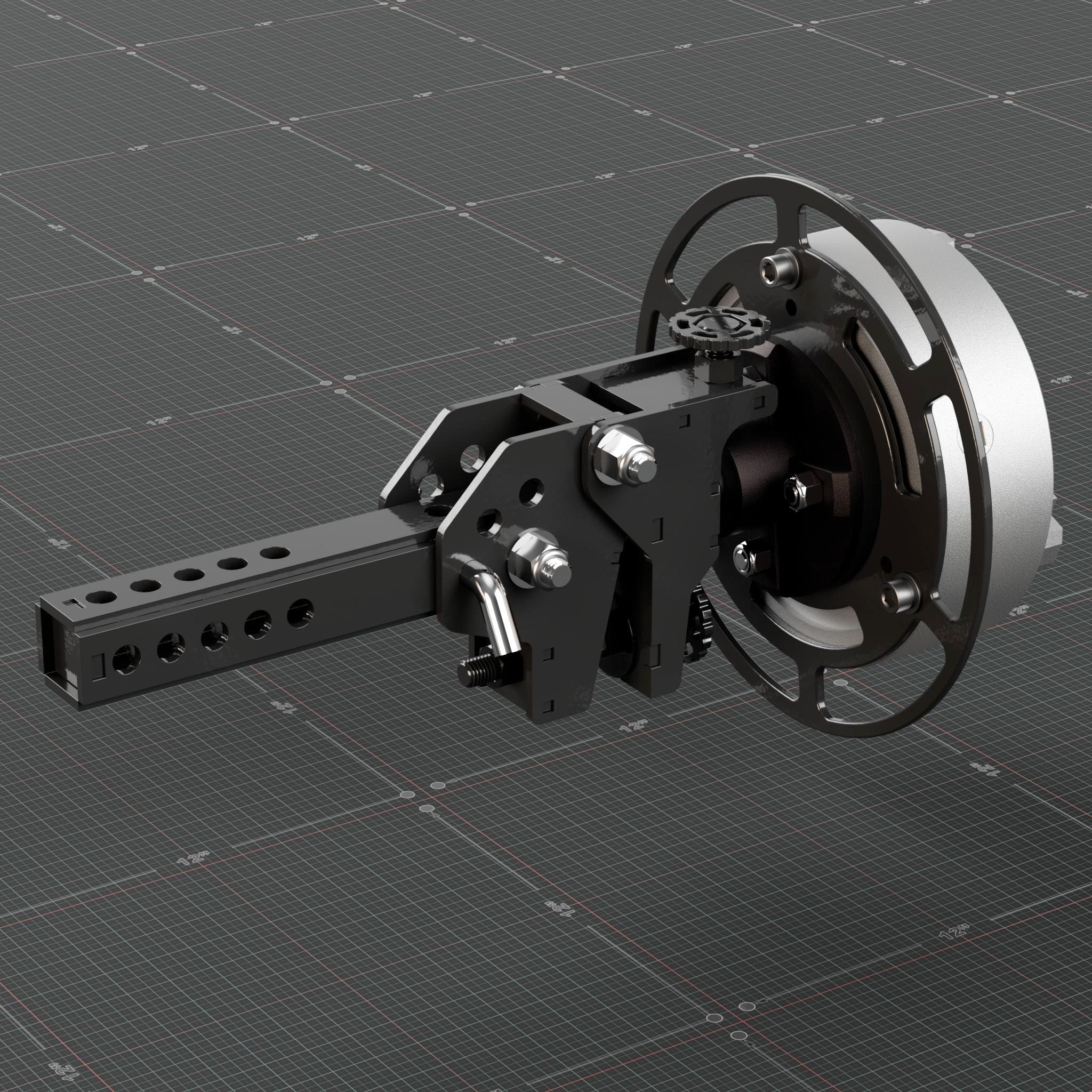

We've upgraded our original with a 100% CNC Roll Out Wheel. This simplified cost-effective design only requires a 2'x3' piece of 1/4" steel to cut. With precision tab and slot design, assembly is simplified, eliminating guesswork and getting you rolling in no time. The backing plate is made to hold either a 10" or 8" Lathe Chuck.

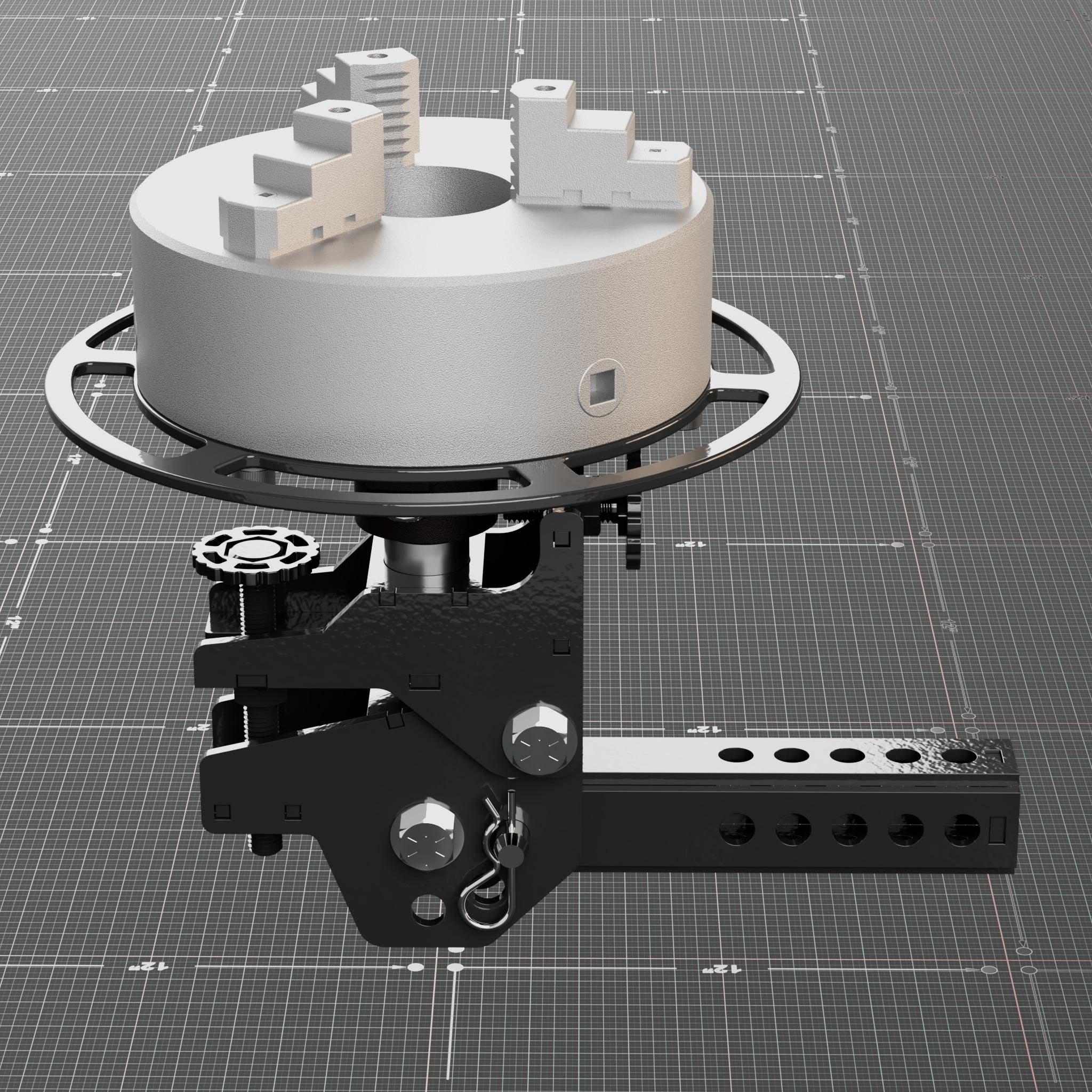

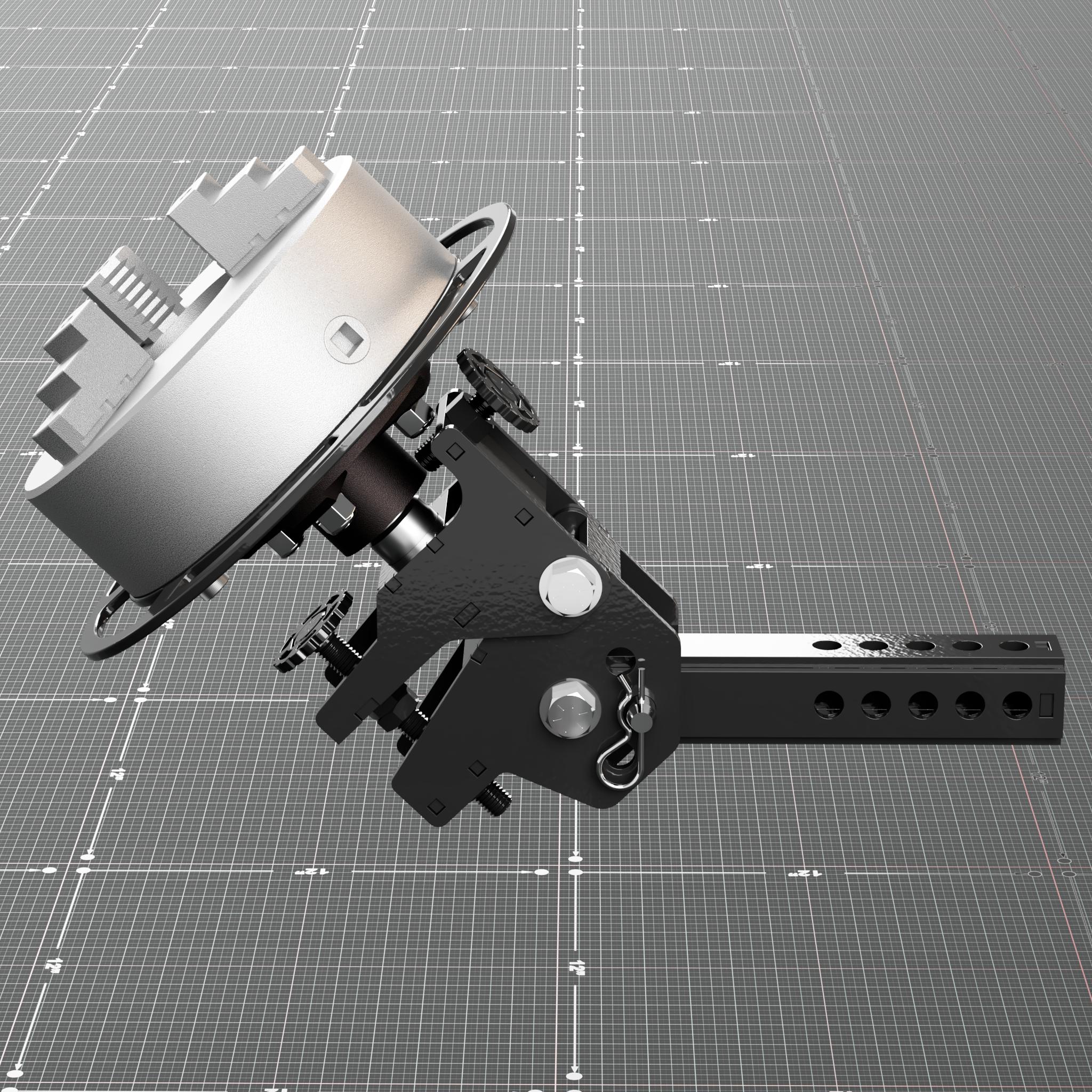

Pin this setup into any 2" hitch and get to work. Pull the quick clevis pin to swivel the wheel and fit up pipe in 2G, 3G, and 6G positions. Use the leveling screw to tilt the wheel up or down and get your fit ups perfectly level every time. A brake knob on the back securely holds the wheel so you can fit up without any movement.
Includes:
- 20-Page PDF Assembly Instructions w/ Material List
- DXF Files for CNC Machine
**DUE TO TIGHT TOLERANCES THERE ARE NO DIMENSIONAL DRAWINGS WITH THIS PLAN**
**THIS PURCHASE IS FOR A DIGITAL DOWNLOAD NOT THE PHYSICAL PRODUCT SHOWN.**
License Type: Personal
Purchase of this plan is for personal use only.
Roll Out Wheel (CNC)
